Assembly the parachute to the drone

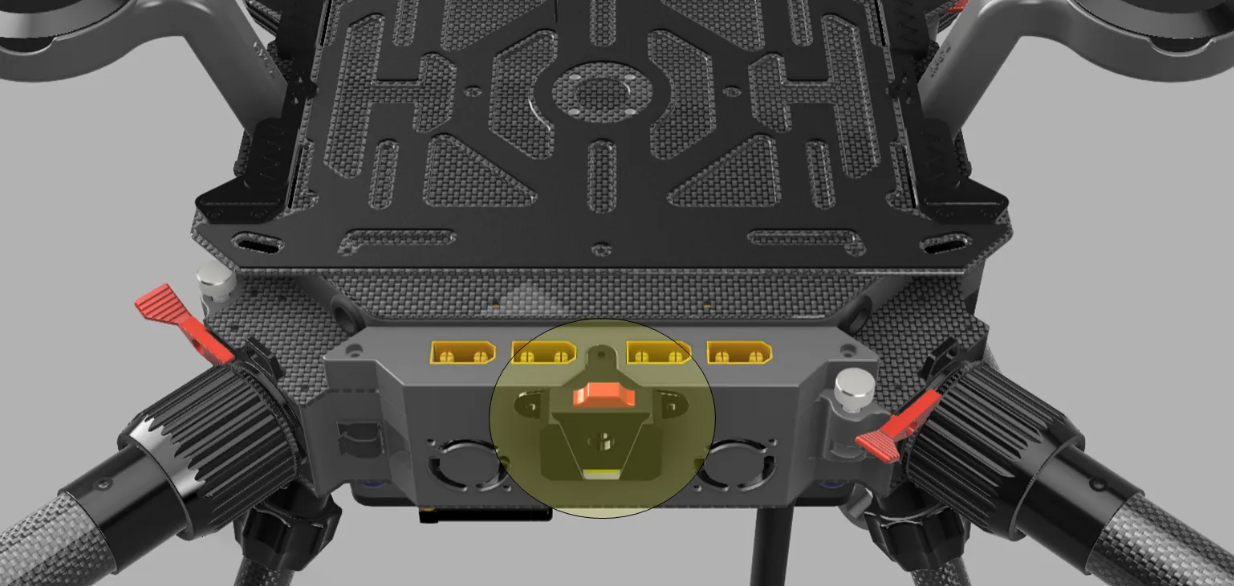

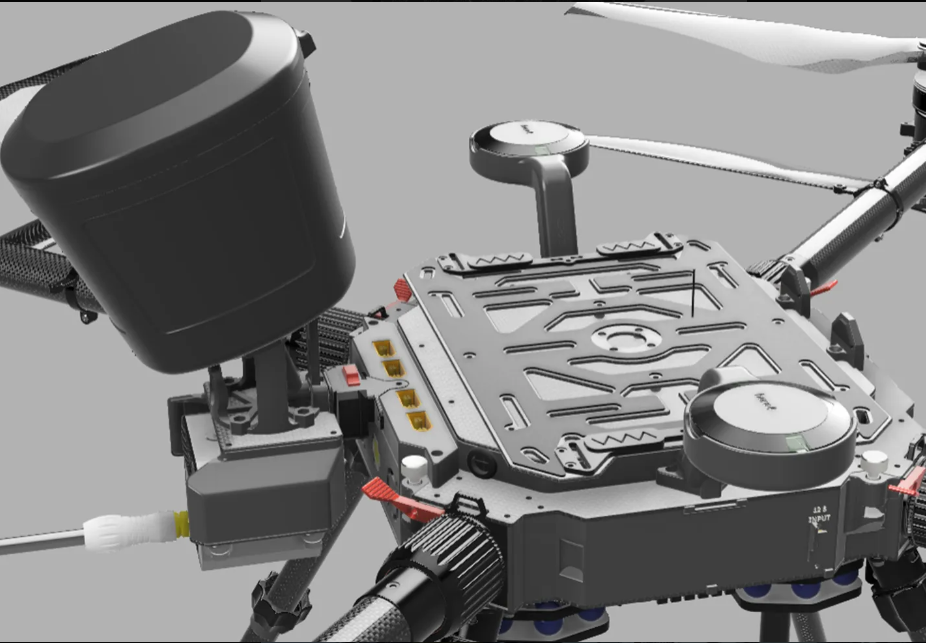

1. Mount the parachute to the V lock release located in the back part of the central frame.

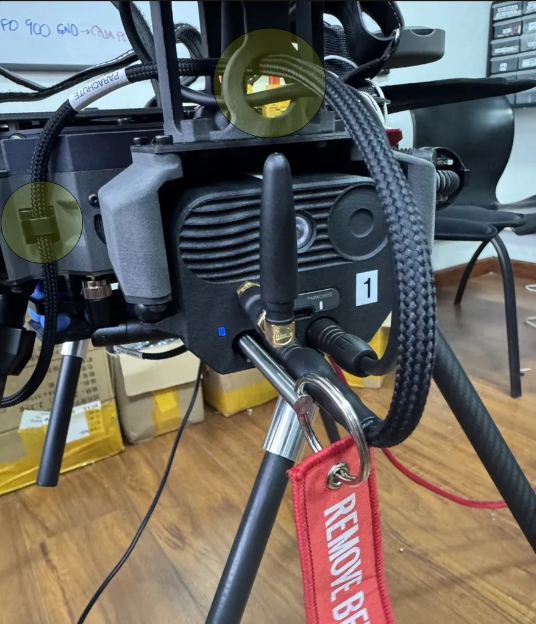

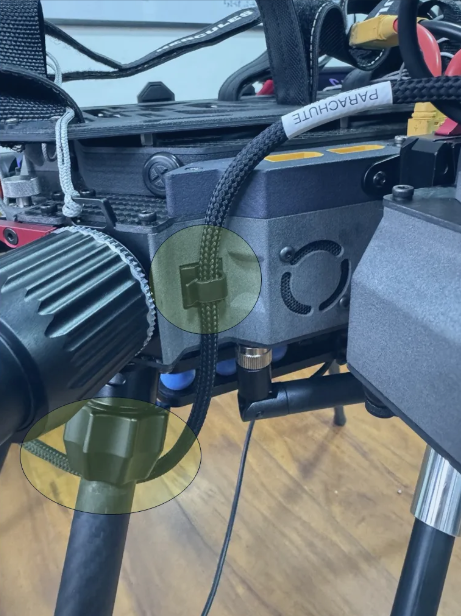

2. Verify connection in the SAP: FTS, PYRO and antenna should be well secured and routed as show

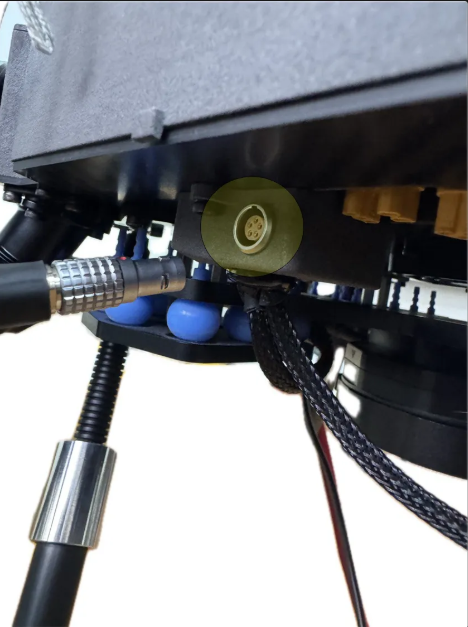

3. Connect the FTS cable to the Parachute connection box located in the bottom plate of the drone

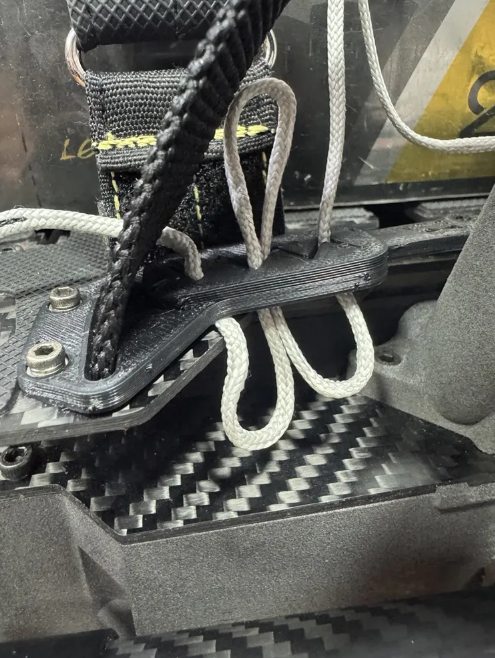

4. Route the nylon cords from each corner of the central frame through the battery tray, creating a continuous loop.

⚠️

make sure the loop wont block the cord for deployment

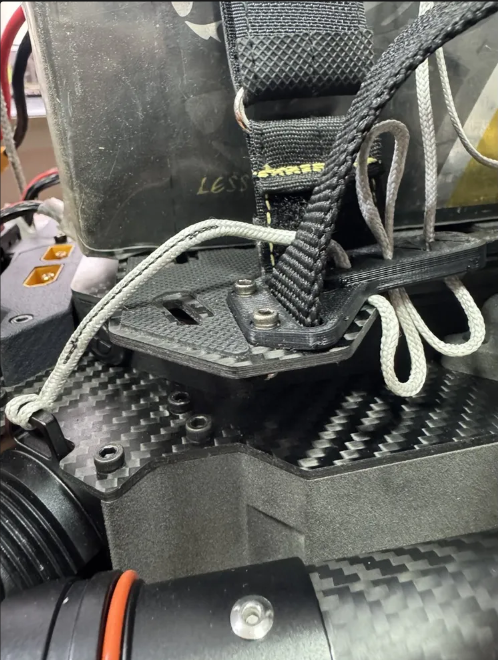

5. Attach the main cord connected to the parachute to the four central frame cords.

⚠️

Make sure the four cords are not twisted in between

⚠️

Recommendation: You can add an extra pair of tapes to hold the remaining cord into the batteries
