Overview
The HERCULES X4 Drone is a cutting-edge Quadcopter-Multirotor drone. Each motor is paired with a 28-inch carbon fiber propeller, delivering unparalleled stability, lift capacity, and performance.
This advanced design makes the HERCULES X4 ideal for a wide range of professional applications, including aerial photography and industrial inspections.
- Classification: Class C3 (compliant with European regulations).
- Maximum Take-Off Mass (MTOM): 18kg.
Operators must ensure the drone's total mass (including payload) does not exceed the MTOM limit to maintain compliance and ensure safe operation.
The Hercules X4 will include the (T) Landing Gear.

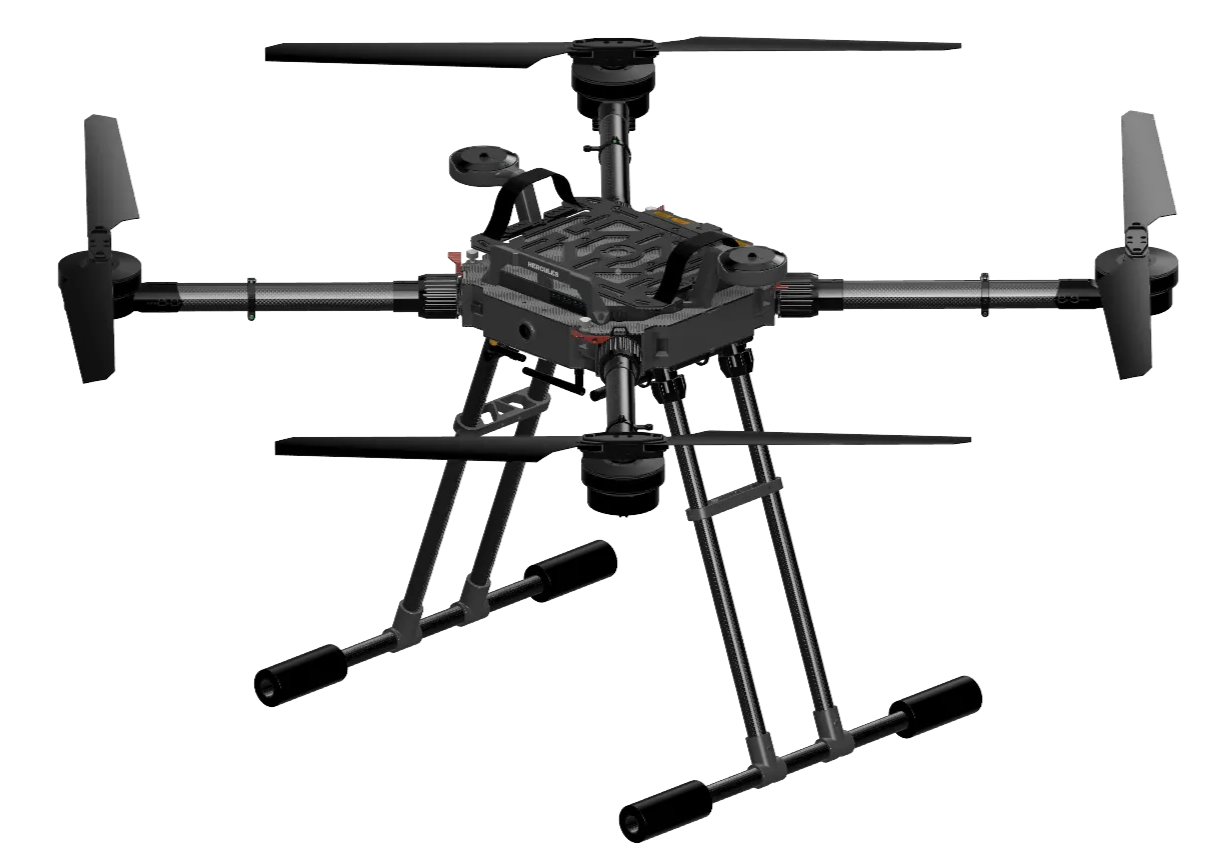

Hercules X4 Drone
Technical Specifications
General Specifications
This section outlines the key physical and operational specifications of the HERCULES X4 Drone.
| SPECIFICATIONS | VALUE |
| Drone weight without batteries | 6.1 kg |
| Motor to motor diameter | 1068 mm |
| Maximum takeoff mass (MTOM) | 24.9 kg |
| Protection against water and dust | IP54 |
Always adhere to local regulations when operating the drone. Ensure the drone’s maximum takeoff mass (MTOM) does not exceed legal limits.
Rotor and Propulsion System.
The HERCULES X4 features a robust propulsion system designed for reliability and efficiency:
| SPECIFICATIONS | VALUE |
| Number of Motor | 4 |
| Motor configuration | Quadcopter |
| Engine model | T-Motor U8II |
| ESC model | T-Motor Alpha 60A HV |
| Propeller model | T-Motor NF 28 X 9.2 |
| Propeller model | T-Motor MF 28 X 15 |
Power System.
The drone is powered by a high-voltage LiPo battery system, ensuring extended flight times and optimal performance under demanding conditions:
| SPECIFICATIONS | VALUE |
| Battery chemistry | LiPo High Voltage |
| Number of cells | 12 |
| Rated voltage | 45.6 v |
| Maximum voltage | 52.2 v |
| Failsafe voltage | 43.5 v |
| Minimum voltage | 42 v |
Flight Control and Communication.
The HERCULES X4 is equipped with advanced flight control systems for precise and stable navigation:
| SPECIFICATIONS | VALUE |
| Autopilot model | Cube Orange+ |
| Firmware model | Hercules-AC |
| GPS model | Here 4 Black |
| Radio control model | Herelink |
Communication Links.
The drone supports reliable communication links for remote control and telemetry:
| SPECIFICATIONS | VALUE |
| Radiocontrol link (EU/FCC) | 868 MHz / 2.4 GHz |
| Telemetry link (EU/FCC) | 868 MHz / 915 MHz / 2.4 GHz / 5.8 GHz |
