Replacement of Propellers

1.Remove M3 screws​

  • Remove the M3 x 10 mm screws from the propeller.

2. Place Propeller According to Its Position​

  • The propellers come in two types:

    • Normal Propeller: To be placed on the upper motors.
    • Push Propeller: To be placed on the bottom motors.

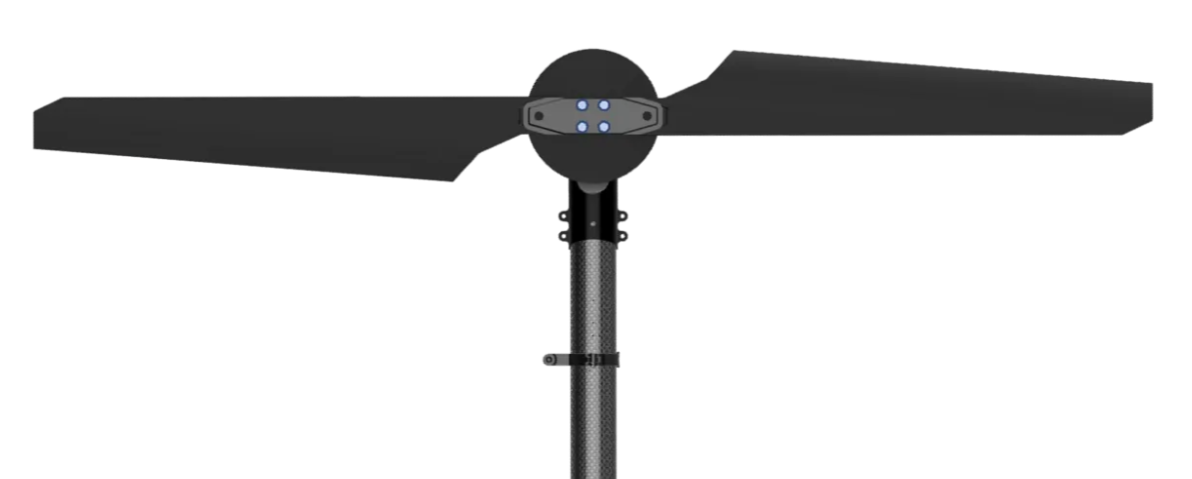

  • Each propeller also has an orientation (Clock Wise CW or Counter Clock Wise CCW). Follow the orientation shown in the image below to ensure proper installation.

⚠️

It is mandatory to install the motor hub between the motor and the propeller to ensure a proper and secure assembly.
