Battery configurations

⚠️

Gens Tattu Lipo Battery user manual

LIPO-MANUAL.pdf 📄

Below are the admissible battery configurations for the HERCULES X8 Drone, along with their specifications and recommended use cases. Each setup specifies the number of batteries required for operation.

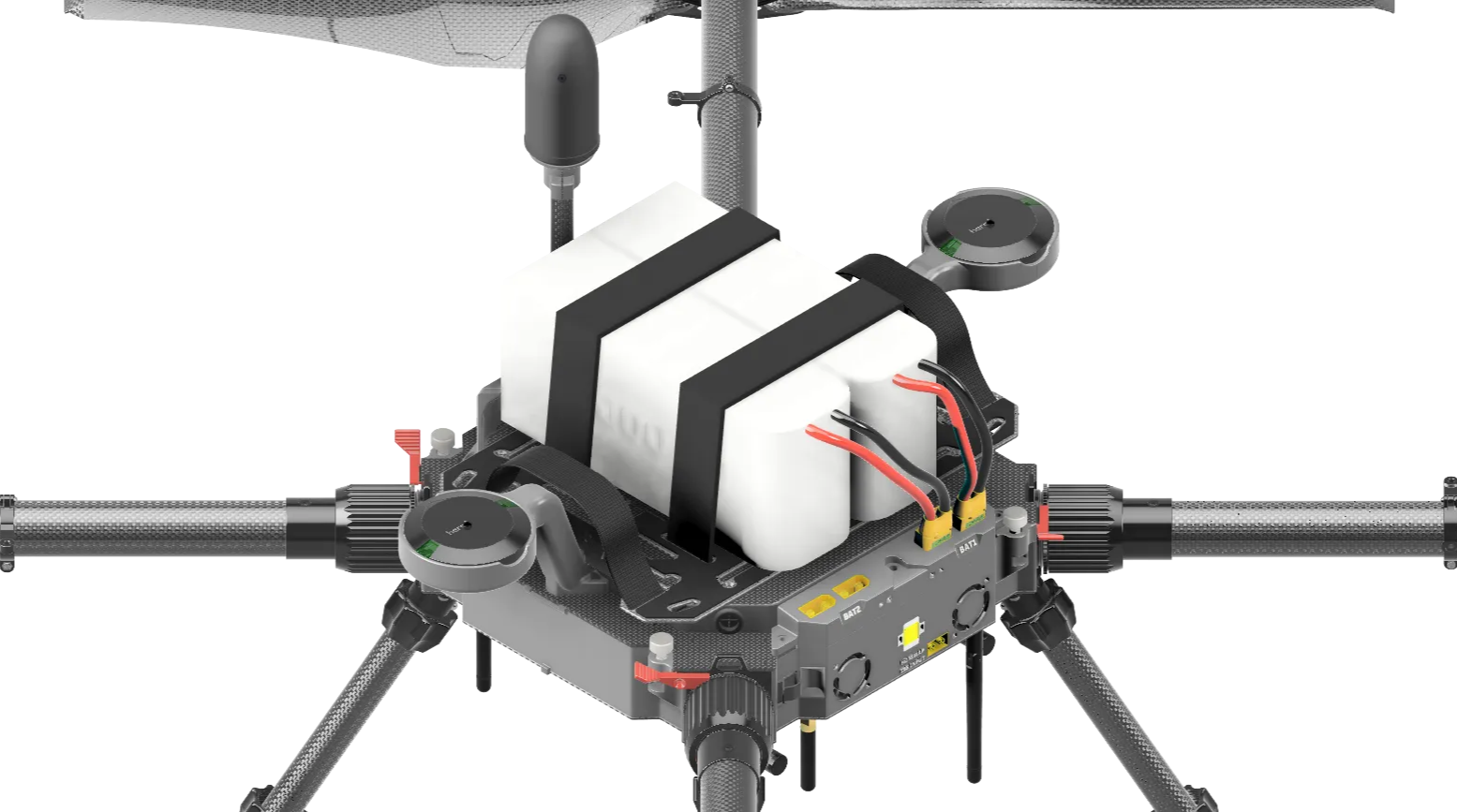

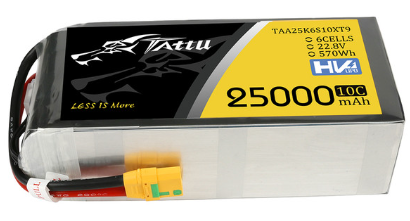

Setup 1: Gens Tattu 25000mAh HV 2S1P​

⚠️

Recommended for Hyperspectral Operations (≤25 kg)

Specifications:​

  • Capacity: 25000mAh
  • Configuration: 6S / 22.8V / 6 cells
  • Discharge Rate: 10C
  • Net Weight x1 battery (±20g): 2577g.
  • Net Weight x2 battery (±20g): 5154g.
  • Dimensions: 207mm (Length) x 91mm (Width) x 65mm (Height)
  • Balancer Connector Type: JST-XHR-7P
  • Discharge Connector: XT90
⚠️

The 2S1P configuration requires 2 batteries connected in series (2S) and 1 in parallel (1P), totaling 2 batteries for operation.

Setup 2: Gens Tattu 25000mAh HV 2S2P.​

Specifications:​

  • Capacity: 25000mAh.
  • Configuration: 6S / 22.8V / 6 cells.
  • Discharge Rate: 10C.
  • Net Weight x1 battery (±20g): 2577g.
  • Net Weight, x4 batteries (±20g): 10308g.
  • Dimensions: 207mm (Length) x 91mm (Width) x 65mm (Height).
  • Balancer Connector Type: JST-XHR-7P.
  • Discharge Connector: XT90.
⚠️

The 2S2P configuration requires 2 batteries connected in series (2S) and 1 in parallel (1P), totaling 2 batteries for operation.

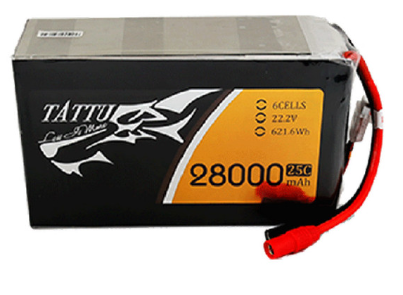

Setup 3: Gens Tattu 28000mAh 2S1P​

Specifications:​

  • Capacity: 28000mAh
  • Configuration: 6S / 22.2V / 6 cells
  • Discharge Rate: 25C
  • Net Weight x1 battery (±20g): 3413g.
  • Net Weight x2 battery (±20g): 6828g.
  • Dimensions: 205mm (Length) x 121mm (Width) x 67mm (Height)
  • Balancer Connector Type: JST-XHR-7P
  • Discharge Connector: XT90
⚠️

Note: The 2S1P configuration requires 2 batteries connected in series (2S) and 1 in parallel (1P), totaling 2 batteries for operation.

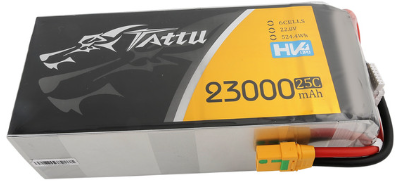

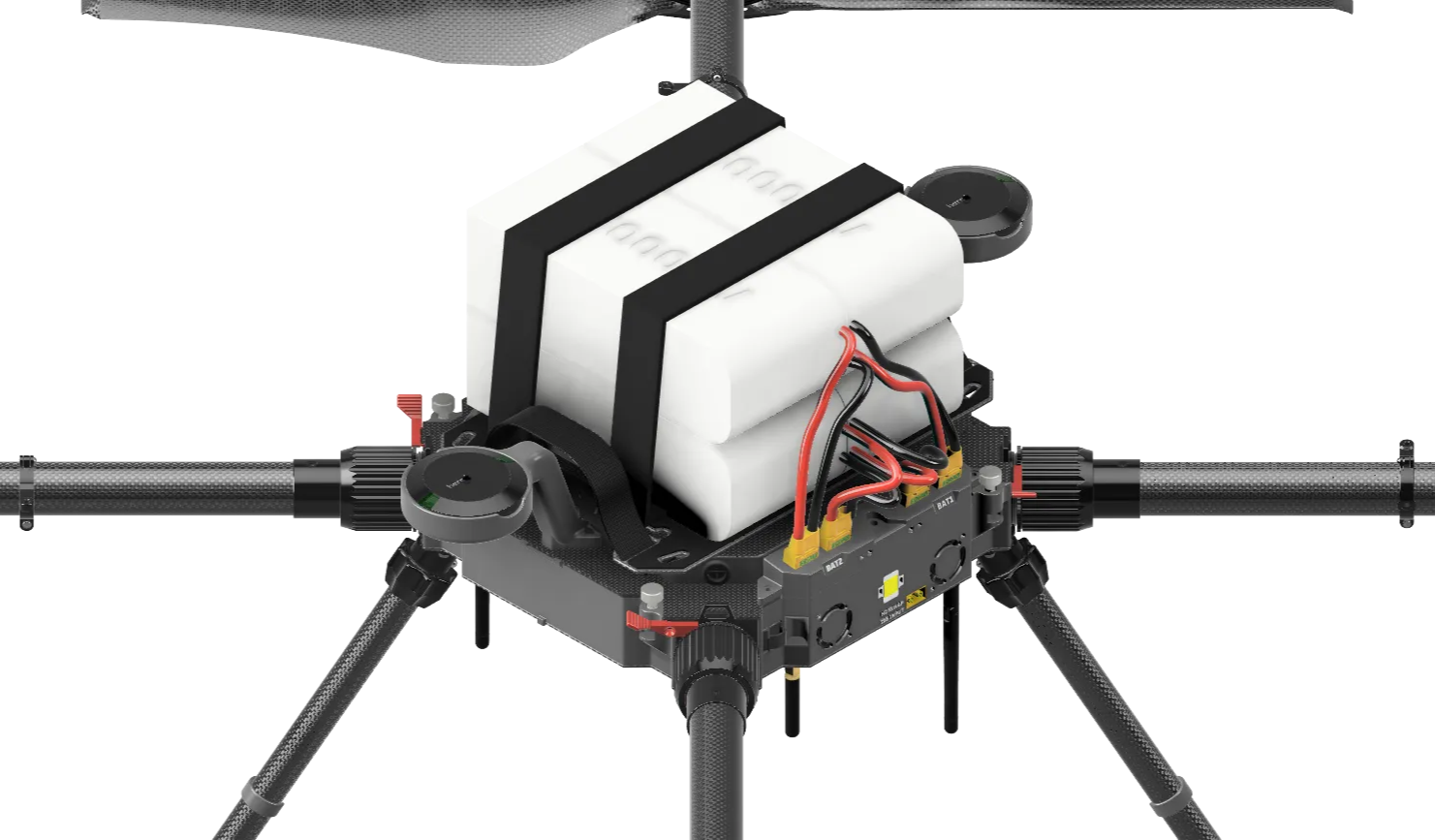

Setup 4: Gens Tattu 23000mAh HV 2S2P​

Specifications:​

  • Capacity: 23000mAh
  • Configuration: 6S / 22.8V / 6 cells
  • Discharge Rate: 25C
  • Max Burst Discharge Rate: 50C
  • Net Weight x1 battery (±20g): 2474g.
  • Net Weight x1 battery (±20g): 9896g.
  • Dimensions: 208mm (Length) x 91mm (Width) x 62mm (Height)
  • Balancer Connector Type: JST-XHR-7P
  • Discharge Connector: XT90
⚠️

Note: The 2S2P configuration requires 2 batteries connected in series (2S) and 2 in parallel (2P), totaling 4 batteries for operation.

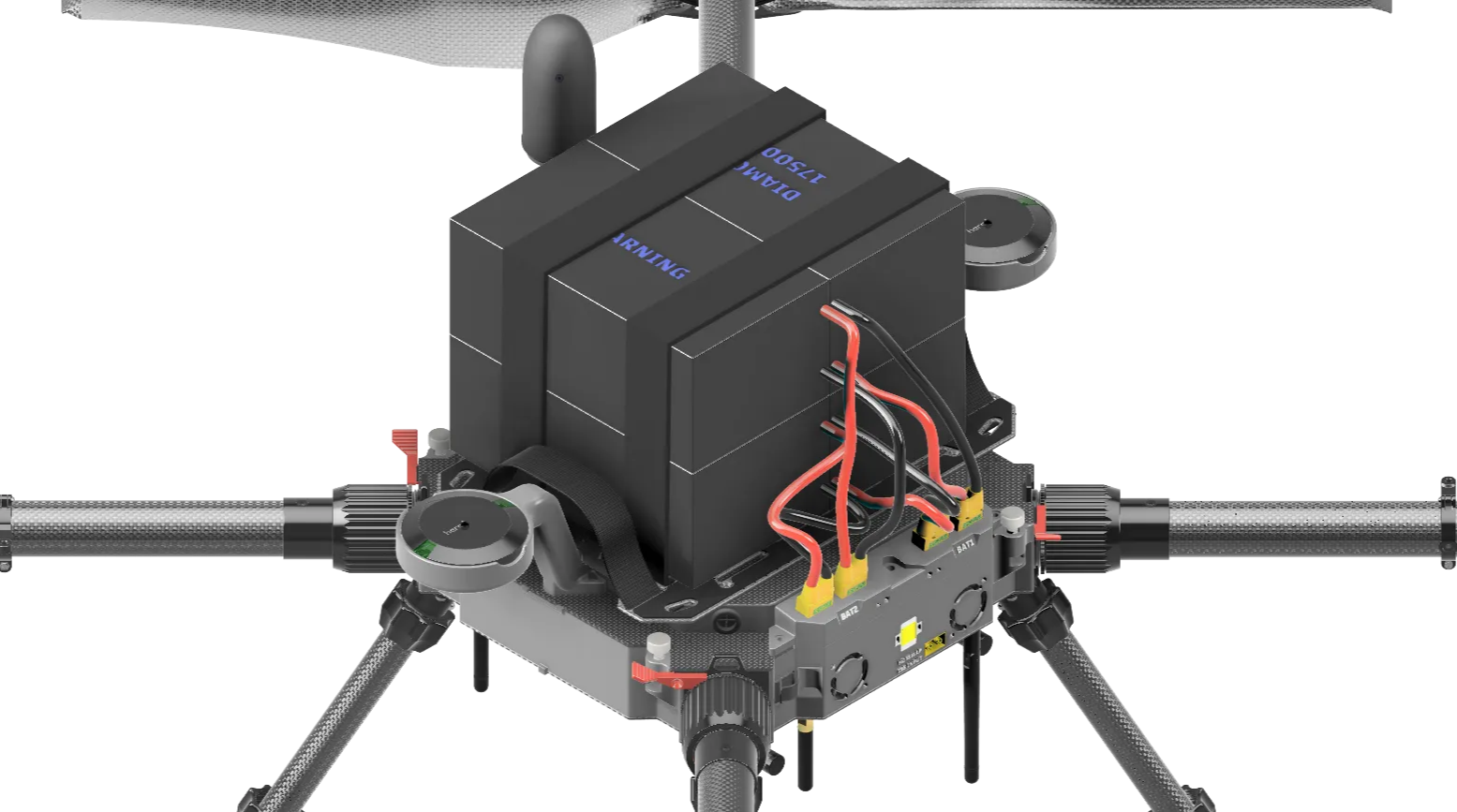

Setup 5: Diamond 12S HV 17500mAh 2S2P​

Specifications:​

  • Capacity: 17500mAh
  • Configuration: 12S / 47.4V / 12 cells
  • Discharge Rate: 10 C
  • Max Burst Discharge Rate: 30C with 2S2P
  • Net Weight x1 battery (±20g): 1668g.
  • Net Weight x4 battery (±20g): 6672g
  • Dimensions: 182mm (Length) x 75mm (Width) x 102mm (Height)
  • Balancer Connector Type: JST-XHR-7P
  • Discharge Connector: XT90
⚠️

Battery Chemistry: Semi Solid State LiPo HV Cell

This battery is lighter in weight but features a lower C-rate, which limits its peak current output compared to GensTattu LiPo HV batteries.

Do not use this battery at temperatures below 5°C, as performance and safety may be compromised.

⚠️

Note: The 2S2P configuration requires 2 batteries connected in series (2S) and 2 in parallel (2P), totaling 4 batteries for operation.
