Performance

The following graphs illustrate the flight performance of the HERCULES X8 Drone under different payload weights and altitudes. These performance metrics are based on the following conditions:

• Hover Flight: No forward movement.

• Battery Reserve: 25% remaining at the end of the flight.

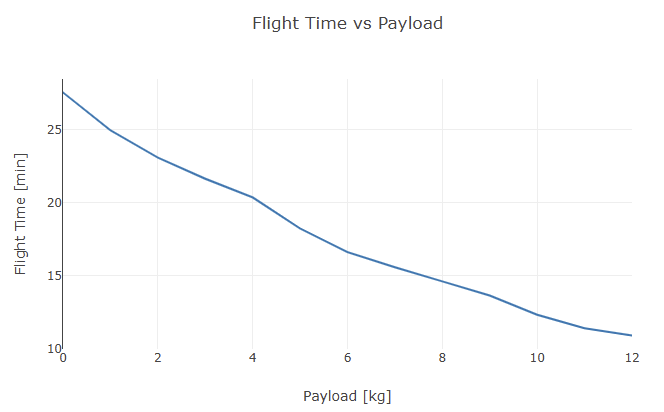

Flight Time vs Payload (0 MASL).

This graph shows the relationship between flight time and payload weight for the HERCULES X8 using the 25000mAh 2S1P battery configuration at 0 meters above sea level (masl).

⚠️

External factors such as windy conditions or extreme maneuvers may reduce the overall flight time.

Flight Time vs Payload, Hercules X8 and 25000mAh 2S1P at 0 masl.

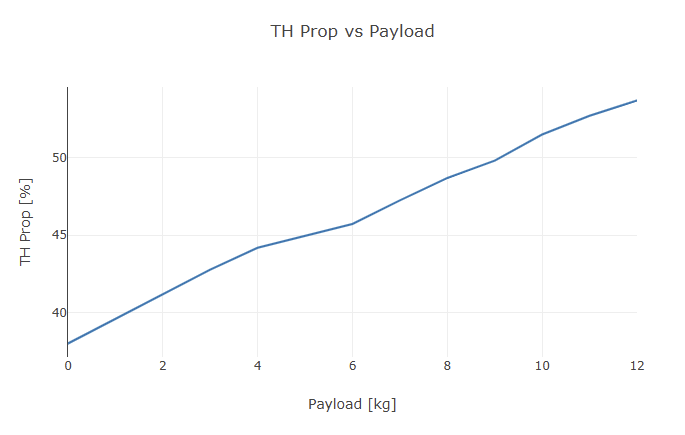

Throttle Percentage vs Payload (0 MASL).

This graph illustrates the throttle percentage required to maintain hover flight at different payload weights for the HERCULES X8 using the 25000mAh 2S1P battery configuration at 0 masl.

Throttle Percentage vs Payload, Hercules X8 and 25000mAh 2S1P at 0 masl.

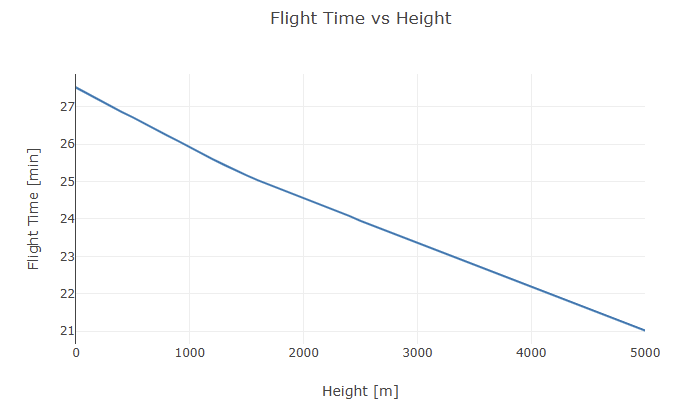

Flight Time vs Height (0Kg Payload).

This graph demonstrates the flight time at different altitudes for the HERCULES X8 using the 25000mAh 2S1P battery configuration with 0kg payload.

Flight Time vs Height, Hercules X8 and 25000mAh 2S1P at 0Kg Payload.

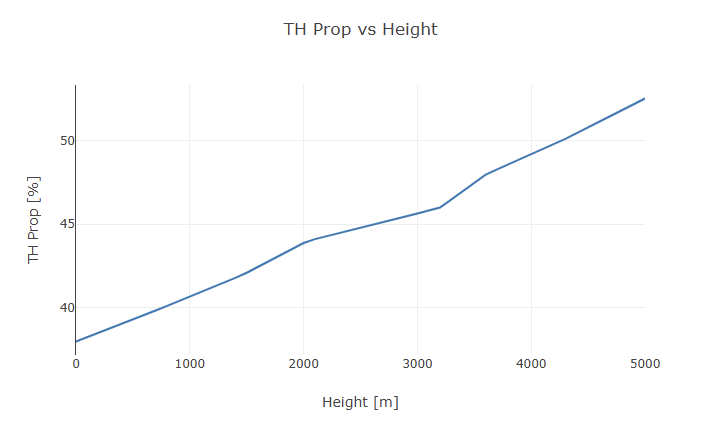

Throttle Percentage vs Height (0Kg Payload).

This graph shows the throttle percentage required to maintain hover flight at different altitudes for the HERCULES X8 using the 25000mAh 2S1P battery configuration with 0kg payload.

Throttle Percentage vs Height, Hercules X8 and 25000mAh 2S1P at 0Kg Payload.
