Power Source

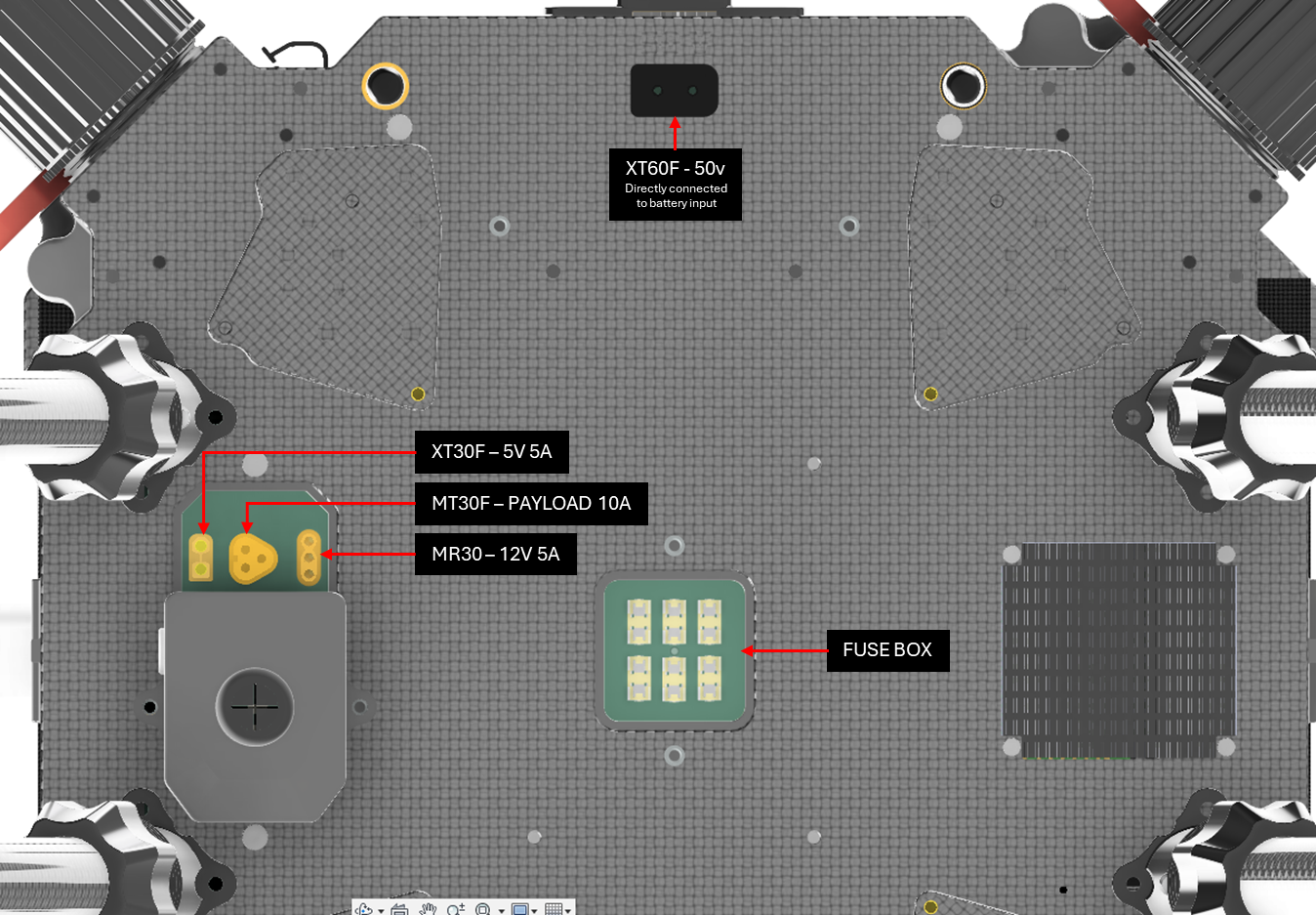

Once the payload is attached, you can access four power sources:

  • 50V Power Source: Via an XT-60F connector.

  • 12V Power Source: Via an MR-30F connector.

  • 5V Power Source: Via an XT-30F connector.

  • Payload Voltage Source: Via MT-30F connector. (Customizable to 5v, 12v, 18v, 24v, 30v at requirement)

For more details about this interface, refer to the IO Port section.

⚠️

Check the Power requirements before connecting any load.
